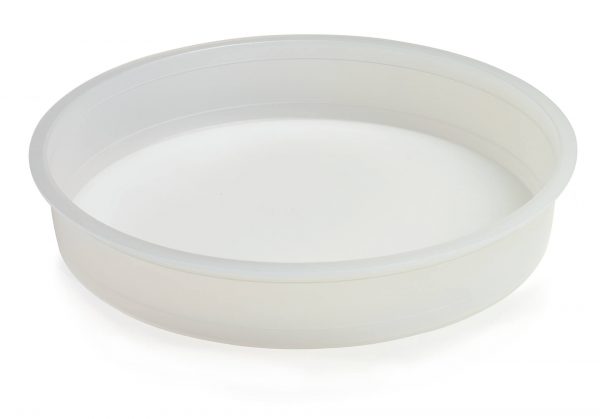

Name: H 400 Kegelstopfen
SKU: H 400
Price: 3.00 EUR
Availability: InStock

Product Description

Richtwerte für die Anwendung als Stopfen
	Metrisches Gewinde							Rohrgewinde
Bestell-Nr.	Regelgewinde	Feingewinde						Rohrgewinde
H 400/C 68	M 7	M 7 x 1
H 400/C 81	M 10	M 10 x 1						R 1/8″
H 400/C 98			M 12 x 1,5
H 400/C 106		M 12 x 1
H 400/C 114	M 14							R 1/4″
H 400/C 133	M 16	M 15 x 1
H 400/C 146	M 18							R 3/8″
H 400/C 153		M 17 x 1		M 18 x 2
H 400/C 174			M 20 x 1,5	M 20 x 2
H 400/C 182		M 20 x 1						R 1/2″
H 400/C 187	M 22
H 400/C 198	M 24		M 22 x 1,5					R 5/8″
H 400/C 203				M 24 x 2
H 400/C 212			M 24 x 1,5
H 400/C 230	M 27		M 26 x 1,5	M 26 x 2				R 3/4″
H 400/C 243		M 27 x 1	M 27 x 1,5	M 28 x 2
H 400/C 257	M 30	M 28 x 1	M 28 x 1,5		M 30 x 3
H 400/C 272			M 30 x 1,5	M 30 x 2	M 32 x 3			R 7/8″
H 400/C 300		M 32 x 1	M 33 x 1,5	M 33 x 2	M 34 x 3
H 400/C 320		M 34 x 1	M 35 x 1,5	M 35 x 2	M 36 x 3
H 400/C 336	M 39	M 36 x 1	M 36 x 1,5	M 37 x 2	M 38 x 3			R 1 1/8″
H 400/C 345		M 38 x 1	M 38 x 1,5	M 39 x 2	M 39 x 3	M 40 x 4
H 400/C 360	M 42		M 39 x 1,5	M 39 x 2		M 42 x 4
H 400/C 379		M 40 x 1	M 40 x 1,5	M 42 x 2	M 42 x 3			R 1 1/4″
H 400/C 385	M 45		M 42 x 1,5
H 400/C 398		M 42 x 1			M 45 x 3	M 45 x 4
H 400/C 413	M 48			M 45 x 2				R 1 3/8″
H 400/C 439					M 48 x 3			R 1 1/2″
H 400/C 455	M 52	M 48 x 1	M 48 x 1,5		M 50 x 3
H 400/C 479		M 50 x 1	M 50 x 1,5		M 52 x 3			R 1 3/4″
H 400/C 498		M 52 x 1				M 55 x 4
H 400/C 505					M 55 x 3	M 56 x 4
H 400/C 525	M 60	M 55 x 1	M 55 x 1,5	M 56 x 2		M 58 x 4
H 400/C 545						M 60 x 4
H 400/C 555		M 58 x 1	M 58 x 1,5		M 60 x 3			R 2″
H 400/C 570			M 60 x 1,5	M 60 x 2		M 62 x 4
H 400/C 585				M 62 x 2		M 64 x 4
H 400/C 605	M 68			M 64 x 2	M 65 x 3
H 400/C 613			M 64 x 1,5	M 65 x 2				R 2 1/4″
H 400/C 625		M 64 x 1				M 64 x 4	M 68 x 4
H 400/C 635					M 68 x 3
H 400/C 650				M 68 x 2
H 400/C 679					M 72 x 3
H 400/C 715				M 75 x 2				R 2 1/2″
H 400/C 728				M 76 x 2			M 80 x 6
H 400/C 740						M 80 x 4
H 400/C 765				M 80 x 2
H 400/C 775							M 85 x 6	R 2 3/4″
H 400/C 790						M 85 x 4
H 400/C 815				M 85 x 2
H 400/C 840						M 90 x 4	M 90 x 6
H 400/C 865				M 90 x 2			M 95 x 6
H 400/C 890						M 95 x 4		R 3 1/4″
H 400/C 915				M 95 x 2			M 100 x 6
H 400/C 940						M 100 x 4
H 400/C 965				M 100 x 2			M 105 x 6	R 3 1/2″
H 400/C 990						M 105 x 4
H 400/C 1015				M 105 x 2			M 110 x 6
H 400/C 1040						M 110 x 4
H 400/C 1065				M 110 x 2			M 115 x 6
H 400/C 1090						M 115 x 4		R 4″
H 400/C 1120				M 115 x 2			M 120 x 6
H 400/C 1140						M 120 x 4
H 400/C 1190						M 125 x 4
H 400/C 1240						M 130 x 4
H 400/C 1275							M 135 x 6
H 400/C 1330						M 140 x 4		R 5″
H 400/C 1468							M 155 x 6	R 5 1/2″
H 400/C 1490					M 155 x 3
H 400/C 1535					M 160 x 3
H 400/C 1600					M 165 x 3		M 170 x 6

Richtwerte für die Anwendung als Kappe
	Metrisches Gewinde							Rohrgewinde
Bestell-Nr.	Regelgewinde	Feingewinde						Rohrgewinde
H 400/C 81	M 7
H 400/C 98	M 9	M 9 x 1
H 400/C 114		M 10,5 x 1
H 400/C 133	M 12	M 12 x 1	M 12 x 1,5
H 400/C 140		M 13 x 1	M 13 x 1,5
H 400/C 146	M 14	M 14 x 1	M 14 x 1,5
H 400/C 160		M 15 x 1	M 15 x 1,5
H 400/C 174		M 17 x 1
H 400/C 182	M 18	M 18 x 1	M 18 x 1,5	M 18 x 2
H 400/C 203		M 19 x 1	M 19 x 1,5	M 19 x 2
H 400/C 212								R 1/2″
H 400/C 230	M 22	M 22 x 1	M 22 x 1,5	M 22 x 2
H 400/C 243	M 24	M 24 x 1	M 24 x 1,5	M 24 x 2
H 400/C 257		M 25 x 1	M 25 x 1,5	M 25 x 2
H 400/C 272		M 26 x 1	M 26 x 1,5	M 26 x 2
H 400/C 320	M 30	M 30 x 1	M 30 x 1,5	M 30 x 2	M 30 x 3			R 7/8″
H 400/C 336		M 32 x 1	M 32 x 1,5	M 32 x 2	M 32 x 3
H 400/C 345	M 33	M 33 x 1	M 33 x 1,5	M 33 x 2	M 33 x 3			R 1″
H 400/C 360			M 35 x 1,5
H 400/C 385		M 38 x 1	M 38 x 1,5	M 38 x 2	M 38 x 3			R 1 1/8″
H 400/C 398		M 38 x 1	M 38 x 1,5	M 38 x 2	M 38 x 3			R 1 1/8″
H 400/C 413		M 40 x 1	M 40 x 1,5	M 40 x 2	M 40 x 3
H 400/C 479	M 45	M 45 x 1	M 45 x 1,5	M 45 x 2	M 45 x 3	M 45 x 4
H 400/C 498								R 1 1/2″
H 400/C 505		M 50 x 1	M 50 x 1,5	M 50 x 2	M 50 x 3	M 50 x 4
H 400/C 525		M 50 x 1	M 50 x 1,5	M 50 x 2	M 50 x 3	M 50 x 4
H 400/C 555								R 1 3/4″
H 400/C 613	M 60	M 60 x 1	M 60 x 1,5	M 60 x 2	M 60 x 3	M 60 x 4		R 2″
H 400/C 660	M 64	M 64 x 1	M 64 x 1,5	M 64 x 2	M 64 x 3	M 64 x 4
H 400/C 679								R 2 1/4″
H 400/C 765		M 75 x 1	M 75 x 1,5	M 75 x 2	M 75 x 3	M 75 x 4		R 2 1/2″
H 400/C 815		M 78 x 1	M 78 x 1,5	M 78 x 2	M 75 x 3	M 75 x 4
H 400/C 840								R 2 3/4″
H 400/C 915			M 90 x 1,5	M 90 x 2	M 90 x 3	M 90 x 4	M 90 x 6
H 400/C 1015			M 100 x 1,5	M 100 x 2	M 100 x 3	M 100 x 4	M 100 x 6	R 3 1/2″
H 400/C 1120			M 110 x 1,5	M 110 x 2	M 110 x 3	M 110 x 4	M 110 x 6
H 400/C 1140			M 112 x 1,5	M 112 x 2	M 112 x 3	M 112 x 4
H 400/C 1190			M 118 x 1,5	M 118 x 2	M 118 x 3	M 118 x 4
H 400/C 1240			M 120 x 1,5	M 120 x 2	M 120 x 3	M 120 x 4	M 120 x 6
H 400/C 1275			M 125 x 1,5	M 125 x 2	M 125 x 3	M 125 x 4	M 125 x 6	R 4 1/2″
H 400/C 1290			M 128 x 1,5	M 128 x 2	M 128 x 3	M 128 x 4
H 400/C 1330			M 130 x 1,5	M 130 x 2	M 130 x 3	M 130 x 4	M 130 x 6
H 400/C 1468			M 145 x 1,5	M 145 x 2	M 145 x 3	M 145 x 4	M 145 x 6
H 400/C 1490			M 145 x 1,5	M 145 x 2	M 145 x 3	M 145 x 4	M 145 x 6
H 400/C 1535			M 150 x 1,5	M 150 x 2	M 150 x 3	M 150 x 4	M 145 x 6	R 5 1/2″

Bestell-Nr.	D	d1	d2	d3	d4	h1
H 400 / C 25	7	2.5	3.3	2.2	1.3	4.6
H 400 / C 50	8.3	5	5.6	4.4	3.7	3.8
H 400 / C 68	10.5	6.8	8	6.7	5.4	4.5
H 400 / C 81	11	8.1	9.3	7.8	6.6	7
H 400 / C 98	12	9.8	10.5	9.6	8.4	7
H 400 / C 106	14	10.6	11.8	10.0	8.8	7
H 400 / C 114	15	11.4	12.6	11.2	10.0	7
H 400 / C 133	16	13.3	14.5	12.8	11.6	7
H 400 / C 140	17	14	15.2	13.6	12.4	7
H 400 / C 146	18	14.6	15.2	14.5	13.3	7
H 400 / C 153	18	15.3	15.8	14.8	13.6	7
H 400 / C 160	20	16	17.2	16.2	14.6	9
H 400 / C 174	21	17.4	18.8	18.0	16.4	9
H 400 / C 182	22	18.2	19.6	18.8	17.2	9
H 400 / C 187	24	18.7	20	19.0	17.7	9
H 400 / C 198	24	19.8	21	19.7	18.4	9
H 400 / C 203	25	20.3	22.6	20.8	18.4	14
H 400 / C 212	26	21.1	23.3	22.0	19.6	14
H 400 / C 230	28	23	25	24.0	21.6	14
H 400 / C 243	30	24.3	26.4	25.0	22.6	14
H 400 / C 257	30	25.7	27.8	26.8	24.4	14
H 400 / C 272	32	27.2	29.3	27.0	24.6	14
H 400 / C 300	35	30	32	30.6	28.4	14
H 400 / C 320	38	32	34	32.0	29.6	14
H 400 / C 336	40	33.6	36	34.0	31.6	14
H 400 / C 345	41	34.5	37	35.0	32.6	14
H 400 / C 360	42	36	38.4	36.0	33.6	14
H 400 / C 379	44	37.9	40	38.0	35.6	14
H 400 / C 385	43	38.5	41	39.5	37.1	14
H 400 / C 398	46	39.8	42	39.5	37.1	14
H 400 / C 413	47	41.3	43.5	41.5	39.1	14
H 400 / C 439	52	43.9	46.3	42.0	40.2	13.5
H 400 / C 455	52	45.5	47.9	45.0	43.0	13.5
H 400 / C 479	54	47.9	49	46.5	44.1	13.5
H 400 / C 498	56	49.8	51.2	48.5	46.1	13.5
H 400 / C 505	55	50.5	51.5	51.3	48.8	14
H 400 / C 525	58	52.5	54.8	52.5	50.6	13.5
H 400 / C 545	60	54.5	55.8	54.0	51.6	12.8
H 400 / C 555	61	55.5	56.3	55.0	52.6	13.5
H 400 / C 570	63	57	57.5	56.8	54.5	13.5
H 400 / C 585	64	58.5	60	58.0	55.6	13.5
H 400 / C 605	66	60.5	61.5	60.0	57.6	13.5
H 400 / C 613	67	61.3	63.7	61.0	58.6	13.5
H 400 / C 625	68	62.5	63.6	62.0	59.6	13.5
H 400 / C 635	69	63.5	64.5	63.0	60.1	13
H 400 / C 650	71	65	66.3	64.5	62.3	13
H 400 / C 660	72	66	67.8	65.0	62.6	13
H 400 / C 679	74	67.9	68.5	67.0	64.6	13
H 400 / C 698	75	69.8	70.9	68.0	66.0	13
H 400 / C 715	77	71.5	73.5	70.0	67.6	13
H 400 / C 728	79	72.8	75	70.0	67.6	13
H 400 / C 740	85	74	75.2	70.0	69.9	13
H 400 / C 765	87	76.5	78.6	78.0	73.4	17
H 400 / C 775	88	77.5	79.7	78.0	72.9	17
H 400 / C 790	90	79	81.1	78.0	75.4	17
H 400 / C 815	92	81.5	82.3	80.0	76.9	17
H 400 / C 840	95	84	87	83.0	79.9	17
H 400 / C 865	97	86.5	88.3	86.0	82.9	17
H 400 / C 890	100	89	92	89.0	86.5	17
H 400 / C 915	102	91.5	94.3	92.0	88.9	17
H 400 / C 940	105	94	96.4	92.0	90.0	17
H 400 / C 965	107	96.5	99.5	96.0	92.9	17
H 400 / C 990	110	99	101.2	99.0	95.9	17
H 400 / C 1015	112	101.5	104	102.0	98.9	17
H 400 / C 1040	115	104	107	104.0	100.9	17
H 400 / C 1065	117	106.5	109.5	106.0	102.9	17
H 400 / C 1090	120	109	112	108.0	105.0	17
H 400 / C 1120	123	112	115	112.5	109.4	17
H 400 / C 1140	125	114	117	114.5	111.4	17
H 400 / C 1190	130	119	123	120.2	116.1	23
H 400 / C 1240	134	124	128	123.0	119.1	23
H 400 / C 1275	137.6	127.5	131.5	127.6	123.6	23
H 400 / C 1290	140	129	133	130.2	126.1	23
H 400 / C 1330	143	133	137	133.0	129.0	23
H 400 / C 1390	149	139	143	139.0	135.0	23
H 400 / C 1468	159.5	146.8	150.8	149.9	144.0	23
H 400 / C 1490	159	149	153	148.0	144.1	23
H 400 / C 1535	163.6	153.5	157.5	153.6	149.6	23
H 400 / C 1600	170	160	164	160.0	156.0	23
